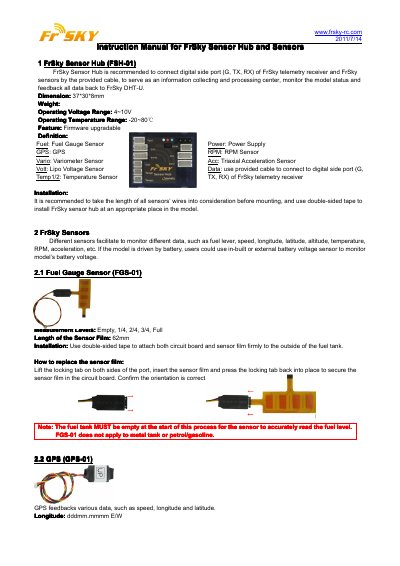

This document is the instruction manual of FrSky Sensor Hub. It introduces the features and characteristics of the product, including dimension, weight, working voltage, working temperature range, functions, interface definition, usage methods, etc.
The FrSky FSH-01 Sensor Hub acts as a central processing unit to connect digital side ports (G, TX, RX) of a FrSky telemetry receiver with various sensors. It monitors model status and feeds data back to the DHT-U display. The device is compact, measuring 37*30*8mm, and operates on a voltage range of 4~10V.
| Dimensions | 37*30*8mm |
|---|---|
| Operating Voltage Range | 4~10V |
| Operating Temperature Range | -20~80°C |
| Fuel Gauge Measurement Levels | Empty, 1/4, 2/4, 3/4, Full |
| Variometer Altitude Range | 0~9000m |
| Temperature Measurement Range | -20~250 degrees Celsius |
| RPM Measurement Range | 0~60000r/min |
Use double-sided tape to attach both circuit board and sensor film firmly to the outside of the fuel tank.
The fuel tank MUST be empty at the start of this process for the sensor to accurately read the fuel level.
Yes, up to two temperature sensors can be used at the same time.
