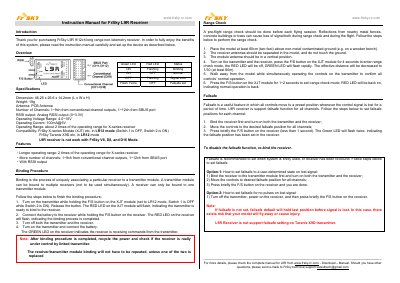

FrSky L9R 9/12ch long range non-telemetry receiver instruction manual, introduces the receiver's specifications, features, compatibility, binding process, etc.
The document is an instruction manual for the FrSky L9R, a long-range non-telemetry receiver compatible with FrSky X-series modules in LR12 mode. It details the device's specifications, including dimensions of 46.25 x 26.6 x 14.2mm and support for up to 12 channels via SBUS port.
| Dimension | 46.25 x 26.6 x 14.2mm (Lx Wx H) |
|---|---|
| Weight | 19g |
| Antenna Type | PCB Antenna |
| Number of Channels | 1~9ch conventional, 1~12ch SBUS |
| Operating Voltage Range | 4.0~10V |
| Operating Current | 100mA@5V |
No, the LOR receiver is not work with FrSky V8, D8, and D16 Mode.
The module must be set to LR12 mode (Switch 1 is OFF, Switch 2 is ON).
Place the model on non-metal ground, separate antennas, and press the F/S button for 4 seconds to enter range check mode.
