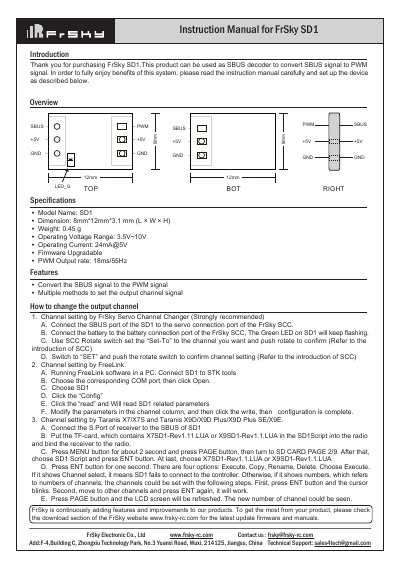

FrSky SD1 SBUS Decoder User Manual

FrSky SD1 is an SBUS decoder that converts SBUS signal to PWM signal.

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 1
File format: PDF
File size: 276 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 6DA95DC871B43BEE53B569FAAC2B0499
PDF: FrSky SD1 SBUS Decoder User Manual PDF

About this manual

The FrSky SD1 is a compact SBUS decoder designed to convert SBUS signals into PWM signals. It is suitable for use with FrSky radio systems and other compatible receivers. The device features a small form factor with dimensions of 8mm x 12mm x 3.1mm and weighs only 0.45g.

What's inside

Introduction
How to change the output channel
Channel setting by FrSky Servo Channel Changer
Channel setting by FreeLink
Channel setting by Taranis X7/X7S and Taranis X9D/X9D Plus/X9D Plus SE/X9E
Specifications
Features

Specifications

Dimension	8mm12mm3.1 mm (L × W × H)
Weight	0.45 g
Operating Voltage Range	3.5V~10V
Operating Current	24mA@5V
PWM Output rate	18ms/55Hz

Frequently asked questions

What is the function of the FrSky SD1?

It can be used as an SBUS decoder to convert SBUS signal to PWM signal.

How can the output channel be changed?

The output channel can be changed using the FrSky Servo Channel Changer, FreeLink software, or specific Taranis radio scripts.

Download PDF (276 KB)
