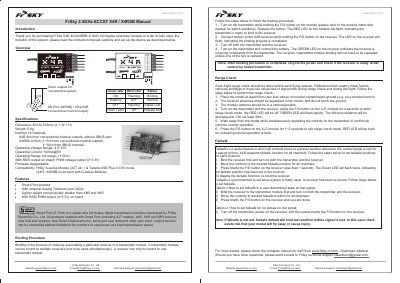

This manual provides a detailed introduction to the functions and usage of FrSky 2.4GHz ACCST X4R / X4RSB receiver.
The document serves as a user guide for the FrSky 2.4GHz ACCST X4R (4-channel) and X4RSB (3/16-channel SBUS) telemetry receivers. It details essential pre-flight procedures such as range checks to ensure signal integrity before flying sessions.
Key operational topics include configuring failsafe positions for lost signals, performing the binding procedure between the receiver and FrSky transmitter modules, and connecting Smart Port enabled sensors like the FBVS-01. The manual also lists technical specifications including dimensions, weight, operating voltage, and range capabilities. This manual is written in Chinese.
| Dimensions | 40×22.5×6mm (L × W × H) |
|---|---|
| Weight | 5.8g |
| Operating Voltage Range | 4.0~10V |
| Operating Current | 100mA@5V |
| Operating Range | >1.5km |
Move controls to the desired position, bind the receiver, and press the F/S button on the receiver briefly (less than 1 second).
The model must be placed at least 60cm (two feet) above non-metal contaminated ground.
You must press the F/S button on the XJT module for 4 seconds.
The effective distance decreases to at least 30m.
