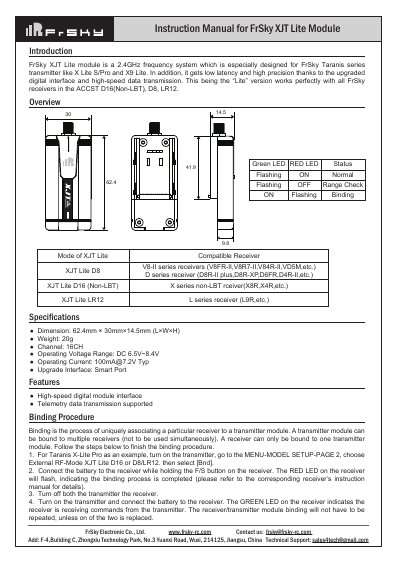

This document provides detailed information about the FrSky XJT Lite module. It is designed for FrSky Taranis series transmitter, supports 16CH channels and has a frequency range of 2.4GHz. The voltage range is DC 6.5V~8.4V and the current is [email protected] Typ. It works perfectly with all FrSky receivers in the ACCST D16(Non-LBT), D8, LR12 series.
The FrSky XJT Lite module is a 2.4GHz frequency system designed for FrSky Taranis series transmitters, such as the X-Lite S/Pro and X9 Lite. It features a high-speed digital interface and supports low latency and high precision data transmission. The module is compatible with various FrSky receivers, including the ACCST D16 (Non-LBT), D8, and LR12 series.
| Dimension | 62.4mm × 30mm×14.5mm (L×W×H) |
|---|---|
| Weight | 20g |
| Channel | 16CH |
| Operating Voltage Range | DC 6.5V~8.4V |
| Operating Current | [email protected] Typ |
It is especially designed for FrSky Taranis series transmitter like X Lite S/Pro and X9 Lite.
It works with V8-II series, D series, X series non-LBT, and L series receivers.
