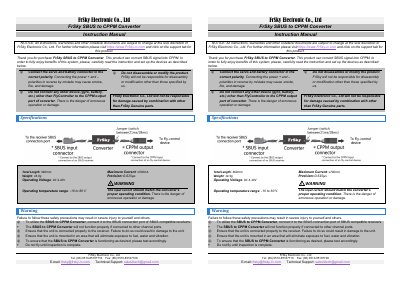

FrSky SBUS to CPPM Converter Instruction Manual. This product can convert SBUS signal into CPPM. In order to fully enjoy benefits of this system, please, carefully read the instruction and set up the devices as described below.
The FrSky SBUS to CPPM Converter is designed to convert an SBUS signal into a CPPM signal. It connects between an SBUS receiver output port and a Fly-control device input port. The manual includes specific instructions on connecting the servo and battery connectors with correct polarity to prevent damage, as well as warnings against connecting other devices like gyros or batteries directly to the CPPM output.
| Total Length | 360mm |
|---|---|
| Weight | 14.9g |
| Operating Voltage | DC 4-10V |
| Operating Temperature Range | -10 to 80°C |
| Maximum Current | <700mA |
| Precision | 0.615us |
This product can convert SBUS signal into CPPM.
It must be connected to the SBUS output connection of an SBUS receiver.
