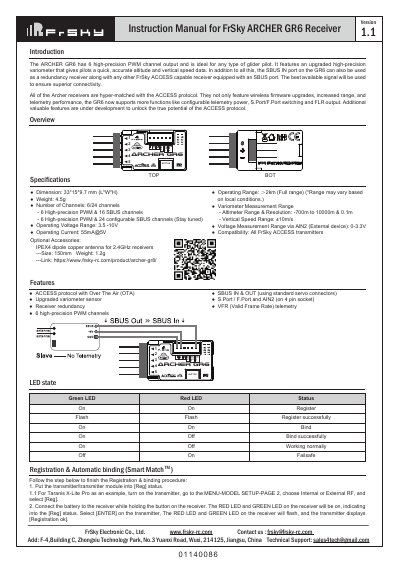

This manual introduces the features and characteristics of FrSky ARCHER GR6 receiver, including dimension, weight, number of channels, operating voltage range, operating current, optional accessories, etc.
The FrSky ARCHER GR6 is a 6-channel high-precision PWM receiver featuring an upgraded variometer for altitude and vertical speed data. It supports the ACCESS protocol with Over The Air (OTA) firmware upgrades and includes SBUS IN/OUT capabilities for redundancy and telemetry.
This document details the setup procedures, including Smart Match registration and automatic binding processes using compatible FrSky transmitters. It also explains how to switch between FS (20ms) and HS (7ms) modes, perform pre-flight range checks, and configure failsafe settings via the radio interface.
| Number of Channels | 6 Highprecision PWM & 24 configurable SBUS channels |
|---|---|
| Operating Voltage Range | 3.5 -10V |
| Operating Current | 55mA at 5V |
| Weight | 4.5g |
| Operating Range | >2km (Full range) |
The receiver operates within a voltage range of 3.5V to 10V.
To switch, go to the receiver [Options] in the transmitter menu and select either the 20ms PWM (FS) or 7ms PWM (HS).
No, you should not perform binding operations in the near range while the firmware upgrading process is in progress.
