The AX7450 development board is a professional-grade development platform based on the ZYNQ7000 platform. It adopts ARM+FPGA SOC technology and integrates dual-core ARM Cortex-A9 and FPGA programmable logic. The development board has a variety of interfaces and peripheral circuits to meet the needs of high-speed data exchange, data storage, video transmission processing, and industrial control.

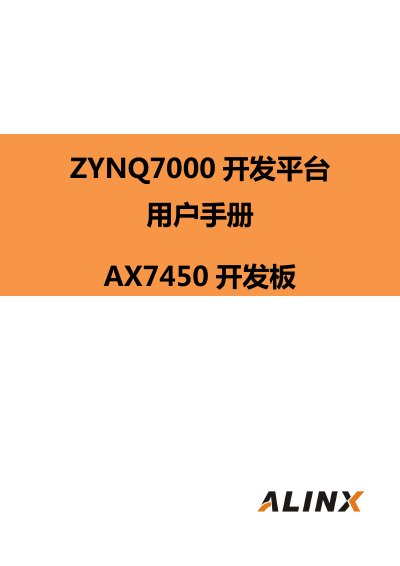

The Alinx AX7450 is a development board built on the Xilinx Zynq-7000 SoC architecture, featuring the XC7Z100 chip which integrates a dual-core ARM Cortex-A9 processor with programmable FPGA logic. The board is designed for high-speed data exchange, data storage, video processing, and industrial control applications. This manual is written in Chinese.
| Main SoC | Xilinx Zynq-7000 XC7Z100-2FFG900 |
|---|---|
| Processor | Dual-core ARM Cortex-A9 up to 800MHz |
| DDR3 Memory (PL) | 4 x 512MB (64-bit width, 800MHz) |
| eMMC Storage | 8GB |
| QSPI Flash | 2 x 256Mb |
| PCIe Interface | PCIe x8 Gen2 (5GBaud) |
| Ethernet | 1 x Gigabit (10/100/1000M) |
| Power Input | DC 12V |
The board supports JTAG debug mode, QSPI Flash boot, and SD card boot modes.
Use the 2-bit switch SW1: ON/ON for JTAG, OFF/OFF for SD Card, OFF/ON for QSPI, and ON/OFF for QSPI (based on MIO5/MIO4 levels).
The ZYNQ core power is +1.0V, generated from the +12V input.
