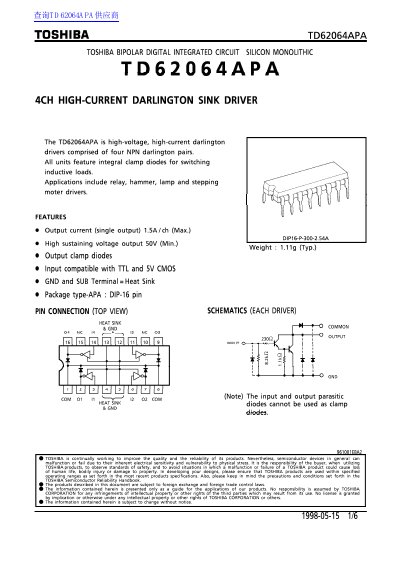

The TD62064APA is a high-voltage, high-current Darlington driver comprised of four NPN Darlington pairs. It features integral clamp diodes for switching inductive loads and is designed for applications such as relay, hammer, lamp, and stepping motor drivers. The device is compatible with TTL and 5V CMOS inputs.
| Output current (single output) | 1.5A/ch (Max.) |
|---|---|
| High sustaining voltage output | 50V (Min.) |
| Output clamp diodes | Included |
| Input compatibility | TTL and 5V CMOS |
| Package type | DIP-16 pin |
| Operating Temperature | -40~85 °C |
| Storage Temperature | -55~150 °C |
