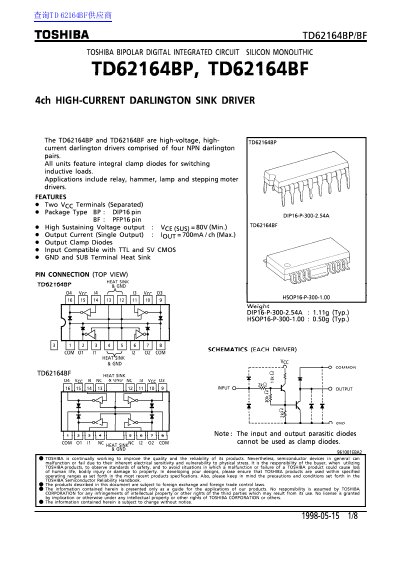

The Toshiba TD62164BP and TD62164BF are high-voltage, high-current Darlington drivers comprised of four NPN Darlington pairs. These integrated circuits feature integral clamp diodes for switching inductive loads and are designed for applications such as relay, hammer, lamp, and stepping motor drivers. The devices are available in two package types: DIP16pin (BP) and HSOP16pin (BF).
| Output Current (Single Output) | 700 mA/ch (Max.) |
|---|---|
| High Sustaining Voltage output | 80V (Min.) |
| Supply Voltage | -0.5~17 Vv |
| Operating Temperature | -40~85 °C |
| Package Type BP | DIP16pin |
| Package Type BF | HSOP16 pin DIP16-P-300-2.54A |
Applications include relay, hammer, lamp and stepping moter drivers.
Yes, the input is compatible with TTL and 5V CMOS.
Yes, all units feature integral clamp diodes for switching inductive loads.
