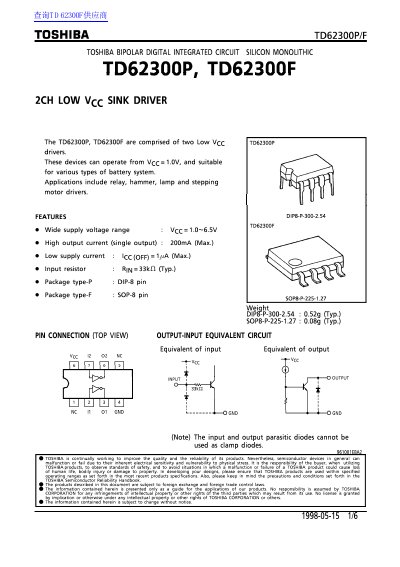

The Toshiba TD62300P and TD62300F are bipolar digital integrated circuits designed as 2-channel low Vcc sink drivers. These devices are suitable for battery systems with a supply voltage ranging from 1.0V to 6.5V. They are intended for applications such as driving relays, hammers, lamps, and stepping motors.
| Supply Voltage Range | 1.0 ~ 6.5 V |
|---|---|
| Output Current (Max) | 200 mA |
| Supply Current (OFF) | 1.0 uA |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -55 ~ 150 °C |
| Package Types | DIP-8, SOP-8 |
Applications include relay, hammer, lamp and stepping motor drivers.
The maximum output current for a single output is 200mA.
The device can operate from a supply voltage as low as 1.0V.
