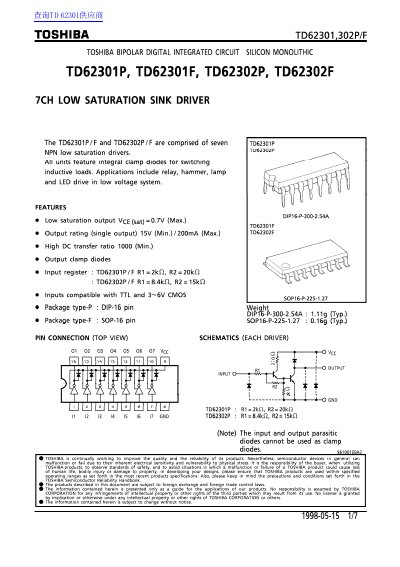

The Toshiba TD62301P/F and TD62302P/F are bipolar digital integrated circuits comprised of seven NPN low saturation drivers. These devices feature integral clamp diodes designed for switching inductive loads such as relays, hammers, lamps, and LEDs in low voltage systems. The chips are available in DIP-16 and SOP-16 packages.
| Number of Channels | 7 |
|---|---|
| Output Saturation Voltage (Max) | 9.7V |
| Output Current (Single Output) | 200mA |
| DC Current Transfer Ratio (Min) | 1000 |
| Supply Voltage (Max) | 15V |
| Package Types | DIP-16, SOP-16 |
Applications include relay, hammer, lamp and LED drive in low voltage system.
Yes, the inputs are compatible with TTL and 3~6V CMOS.
All units feature integral clamp diodes for switching inductive loads.
