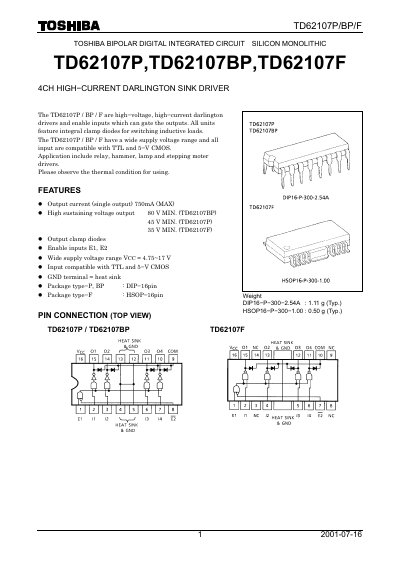

TD62107P/BP/F is a high-voltage, high-current darlington driver produced by Toshiba. It has enable inputs which can gate the outputs. All units feature integral clamp diodes for switching inductive loads. TD62107P/BP/F have a wide supply voltage range and all input are compatible with TTL and 5V CMOS. Application include relay, hammer, lamp and stepping moter drivers. Please observe the thermal condition for using.
The Toshiba TD62107P/BP/F is a 4-channel high-voltage, high-current Darlington sink driver designed to gate outputs for driving inductive loads such as relays, solenoids, lamps, and stepping motors. The device features integral clamp diodes to protect against switching inductive loads and includes enable inputs for controlling the outputs.
Available in three variants (P, BP, and F), the driver supports a wide supply voltage range of 4.75V to 17V. Inputs are compatible with TTL and 5-V CMOS logic levels. The package types include DIP-16pin (P, BP) and HSOP-16pin (F).
| Output current (single output) | 750mA (MAX) |
|---|---|
| High sustaining voltage output | 80 V MIN. (TD62107BP) |
| Supply voltage range | 4.75~17 V |
| Input compatibility | TTL and 5-V CMOS |
| Operating temperature | -40~85 °C |
| Package type P, BP | DIP-16pin |
| Package type F | HSOP-16pin |
Applications include relay, hammer, lamp and stepping motor drivers.
Yes, all units feature integral clamp diodes for switching inductive loads.
The maximum output current for the TD62107F is 750mA.
