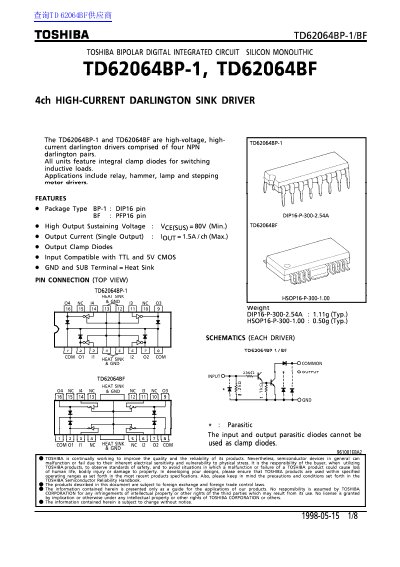

The Toshiba TD62064BP-1 and TD62064BF are high-voltage, high-current Darlington drivers comprised of four NPN Darlington pairs. These integrated circuits feature integral clamp diodes designed for switching inductive loads. Applications include driving relays, hammers, lamps, and stepping motors. The devices are available in BP-1 (DIP16 pin) and BF (PFP16 pin) package types.
| Output Sustaining Voltage | 80V (Min.) |
|---|---|
| Output Current (Single Output) | 1.5A/ch (Max.) |
| Input Compatibility | TTL and 5V CMOS |
| Package Type BP-1 | DIP16 pin |
| Package Type BF | PFP16 pin DIP16-P-300-2.54A |
| Operating Temperature | -40~85 °C |
Applications include relay, hammer, lamp and stepping motor drivers.
Yes, all units feature integral clamp diodes for switching inductive loads.
The maximum output current is 1.5A per channel.
