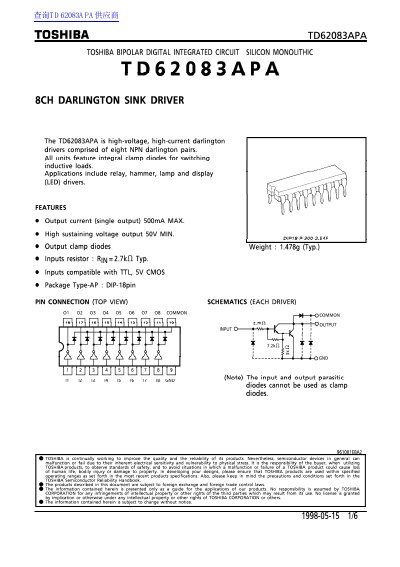

The Toshiba TD62083APA is a high-voltage, high-current Darlington driver comprised of eight NPN Darlington pairs. It features integral clamp diodes for switching inductive loads and is designed for applications such as relay, hammer, lamp, and LED drivers. The device supports TTL and 5V CMOS compatible inputs.
| Output current (single output) | 500mA MAX. |
|---|---|
| High sustaining voltage output | 50V MIN. |
| Package Type | DIP-18pin |
| Operating Temperature | -40~85 C |
| Power Dissipation | 1.47 W |
The maximum output current for a single output is 500 mA.
The high sustaining voltage output is at least 50 V.
The typical input resistor value is 2.7 kΩ.
