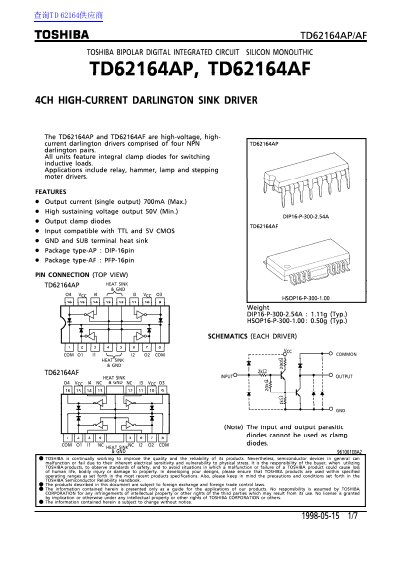

The Toshiba TD62164AP and TD62164AF are high-voltage, high-current Darlington drivers comprised of four NPN Darlington pairs. These integrated circuits feature integral clamp diodes for switching inductive loads and are designed for applications such as relay, hammer, lamp, and stepping motor drivers. The devices are available in two package types: DIP-16pin (AP) and PFP-16pin (AF).
| Output current (single output) | 700mA (Max.) |
|---|---|
| High sustaining voltage output | 50V (Min.) |
| Supply Voltage | -0.5~17 V |
| Output Current | 700 mA/ch |
| Input Current | 50 mA |
| Input Voltage | 17 V |
| Clamp Diode Reverse Voltage | 50 V |
| Clamp Diode Forward Current | 700 mA |
| Package type-AP | DIP-16pin |
| Package type-AF | PFP-16pin |
Applications include relay, hammer, lamp and stepping motor drivers.
The maximum output current is 700mA per channel.
The available packages are DIP-16pin (AP) and PFP-16pin (AF).
