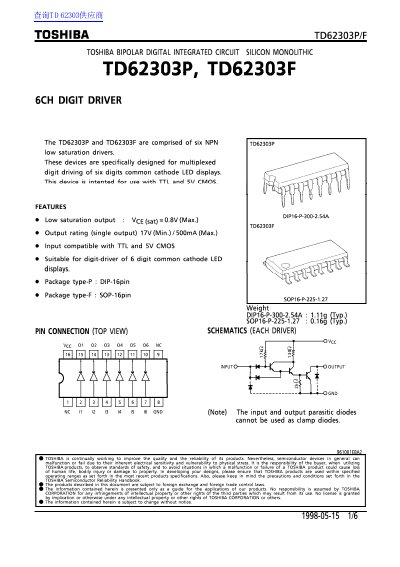

The Toshiba TD62303P and TD62303F are bipolar digital integrated circuits designed specifically for multiplexed digit driving of six-digit common cathode LED displays. The devices comprise six NPN low saturation drivers and are intended for use with TTL and 5V CMOS logic levels. They are available in two package types: Type-P (DIP-16pin) and Type-F (SOP-16pin).
| Output rating (single output) | 17V (Min.) / 500mA (Max.) |
|---|---|
| Supply Voltage | -0.5~7.0 V |
| Output Current | 500 mA/ch |
| Input Voltage | -0.5~Vcc+0.5 V |
| Operating Temperature (Type-P) | -30~75 °C |
| Operating Temperature (Type-F) | -40~85 °C |
| Package Type-P | DIP-16pin |
| Package Type-F | SOP-16pin |
These devices are specifically designed for multiplexed digit driving of six digits common cathode LED displays.
Yes, the input is compatible with TTL and 5V CMOS.
The maximum output current per channel is 500 mA.
