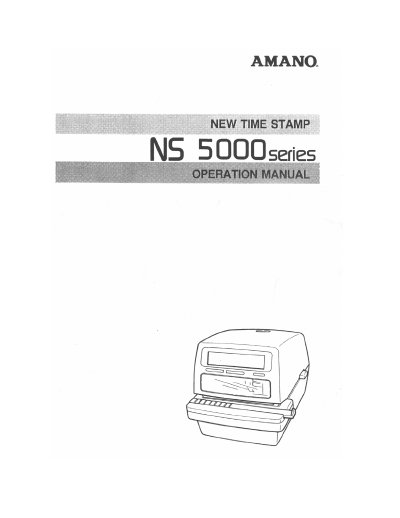

This manual provides instructions for the Amano New Time Stamp NS5000 Series, a device designed to print dates and numbers on slips and forms. It covers setup, operation modes, and maintenance procedures.
| Power consumption | Normally 3 W, Max. 12 W |
|---|---|
| Operating conditions (Temperature) | -10°C to 45°C |
| Operating conditions (Humidity) | 10% to 90% (non-condensing) |
| External dimensions | 170(W) x 163(D) x 224(H) mm |
| Printing method | 9-pin dot printer System |
| Paper thickness | 1 mm max. |
| Printing range (Horizontal) | 15 to 116mm (when the side guide is used) |
| Printing range (Vertical) | 16 to 85 mm (when the paper detection sensor is used) |
The unit supports paper with a thickness of 1 mm maximum.
