This product is a HMC132G7 and HMC132P7 surface mounted GaAS MMIC high isolation SPDT switch, which has 40 dB isolation, 0.5 to 6GHz bandwidth, and typical switching time of 63 ns.

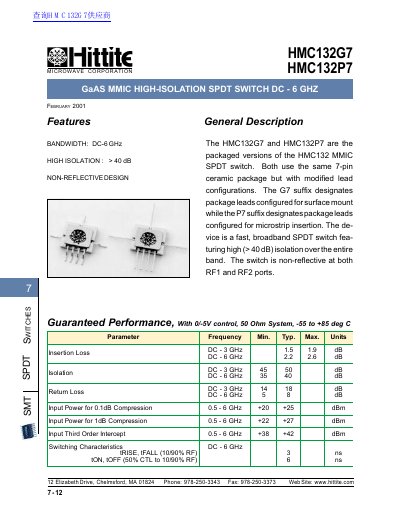

The document describes the HMC132G7 and HMC132P7, which are packaged versions of the HMC132 MMIC SPDT switch. Both models utilize a 7-pin ceramic package with modified lead configurations: G7 for surface mount and P7 for microstrip insertion. The device is designed as a fast, broadband switch featuring high isolation (>40 dB) over its entire operating band.
| Bandwidth | DC - 6 GHz |
|---|---|
| Isolation | > 40 dB (DC - 3 GHz) |
| Return Loss | 5 to 8 dB (DC - 6 GHz) |
| Switching Time (Rise/Fall) | 3 ns |
The G7 suffix designates package leads configured for surface mount, while the P7 suffix designates package leads configured for microstrip insertion.
The input power for 0.1dB compression ranges from +20 dBm to +25 dBm across the frequency band.
The device operates with a control voltage range of +0.5 to -7.5 Vdc.
