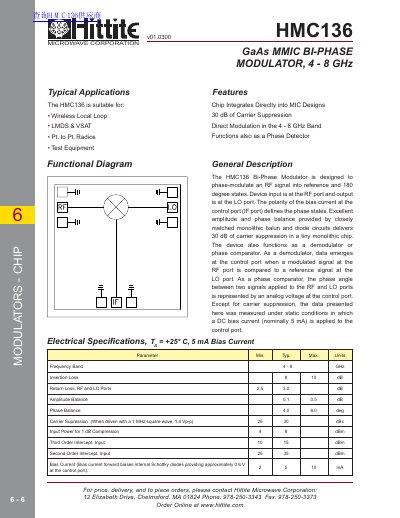

The HMC136 is a GaAs MMIC BI-PHASE MODULATOR, which works in the 4 - 8 GHz band, has 30 dB of carrier suppression, and can be directly integrated into MIC circuits. It can also be used as a phase detector.
The HMC136 is a GaAs MMIC bi-phase modulator designed for frequencies between 4 and 8 GHz. It integrates directly into microwave designs to phase-modulate RF signals into reference and 180-degree states. The device also functions as a phase detector or demodulator, offering excellent amplitude and phase balance through closely matched monolithic circuits.
| Frequency Band | 4-8 GHz |
|---|---|
| Insertion Loss | 8 to 10 dB |
| Return Loss | 25 to 3.0 dB |
| Amplitude Balance | 0.1 to 0.5 dB |
| Phase Balance | 4.0 to 6.0 deg |
| Carrier Suppression | 30 dBc |
| Input Power for 1 dB Compression | 4 to 8 dBm |
| Third Order Intercept (Input) | 10 to 15 dBm |
| Second Order Intercept (Input) | 25 to 35 dBm |
It is suitable for Wireless Local Loop, LMDS & VSAT, Point-to-Point Radios, and Test Equipment.
Yes, the device also functions as a demodulator or phase comparator.
The device provides 30 dB of carrier suppression.
