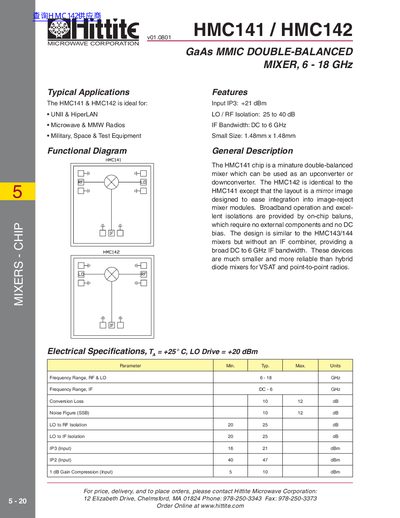

The HMC141 and HMC142 are miniature GaAs MMIC double-balanced mixers designed for use as upconverters or RF downconverters. The devices operate in a frequency range of 6 to 18 GHz with an IF bandwidth from DC to 6 GHz. They feature on-chip baluns that require no external components and no DC bias, making them suitable for military, space, test equipment, and microwave applications.
| Frequency Range, RF & LO | 6-18 GHz |
|---|---|
| Frequency Range, IF | DC -6 GHz |
| Conversion Loss (Typ) | 12 dB |
| Noise Figure SSB (Typ) | 12 dB |
| LO to RF Isolation (Typ) | 25 dB |
| LO to IF Isolation (Typ) | 25 dB |
| Input IP3 (Typ) | +21 dBm |
| Operating Temperature | -55 to +85 °C |
The small size is 1.48mm x 1.48mm.
The device operates with a frequency range of 6-18 GHz for both the RF and LO ports.
The absolute maximum rating for the LO drive is +27 dBm.
The typical conversion loss is 12 dB.
