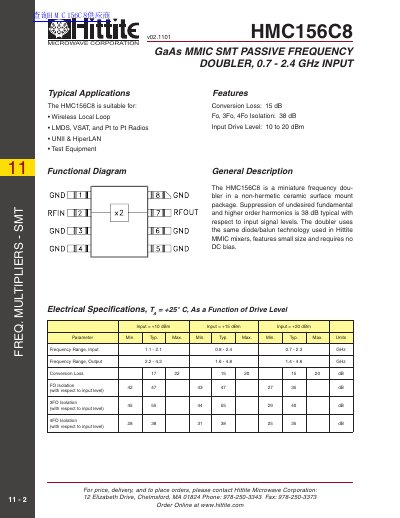

The HMC156C8 is a miniature frequency doubler in a non-hermetic ceramic surface mount package. It is suitable for wireless local loop, LMDS, VSAT, and Pt to Pt radios, UNII & HiperLAN, and test equipment. Its frequency range is 0.7-2.4GHz, input drive level is 10 to 20dBm, conversion loss is 15dB, and 3Fo, 4Fo isolation is 38dB.
The HMC156C8 is a miniature frequency doubler in a non-hermetic ceramic surface mount package designed for input frequencies between 0.7 and 2.4 GHz. It utilizes diode/balun technology similar to Hittite MMIC mixers and requires no DC bias. Typical applications include wireless local loops, LMDS, VSAT, Pt to Pt radios, UNII & HiperLAN, and test equipment.
| Conversion Loss | 15 dB |
|---|---|
| Input Drive Level | 10 to 20 dBm |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -65 to +150 °C |
The absolute maximum input drive level is +27 dBm.
The device accepts an input signal between 0.7 GHz and 2.4 GHz.
The typical conversion loss is 15 dB.
The maximum input drive level is +27 dBm.
