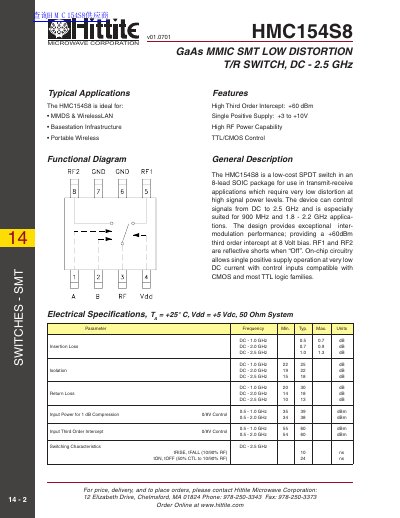

The HMC154S8 is a low-cost, low-distortion GaAs MMIC SMT switch with DC-2.5GHz operation for use in transmit-receive applications requiring very low distortion at high signal power levels. The device is especially suited for 900 MHz and 1.8-2.2 GHz applications. The design provides exceptional inter-modulation performance; providing a +60dBm third order intercept at 8 Volt bias.
The HMC154S8 is a GaAs MMIC SMT low distortion T/R switch designed for use in applications requiring very low distortion at high signal power levels, such as basestation infrastructure and portable wireless systems. The device operates with a single positive supply from +3 to +10V and features TTL/CMOS control inputs.
| Frequency Range | DC - 2.5 GHz |
|---|---|
| Supply Voltage Range | +3 to +10V |
| Third Order Intercept (Typ) | +60 dBm |
| Insertion Loss (DC - 2.5 GHz) | 10 to 13 dB |
| Operating Temperature Range | -40 to +85 °C |
The device can control signals from DC to 2.5 GHz.
Highest RF signal power capability is achieved with Vdd set to +10V.
