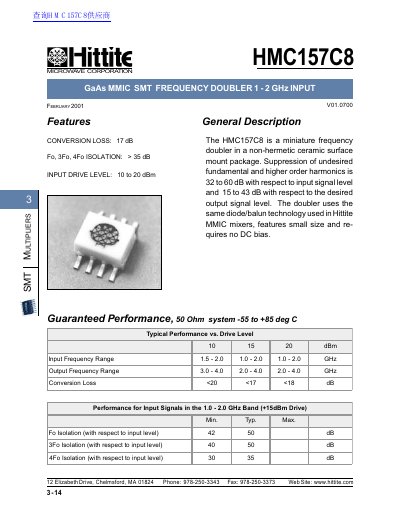

The HMC157C8 is a miniature frequency doubler in a non-hermetic ceramic surface mount package. It suppresses undesired fundamental and higher order harmonics with respect to input signal level and desired output signal level. The doubler uses the same diode/balun technology used in Hittite MMIC mixers, features small size, and requires no DC bias.
The HMC157C8 is a miniature frequency doubler housed in a non-hermetic ceramic surface mount package. It utilizes diode/balun technology similar to Hittite MMIC mixers and requires no DC bias. The device provides suppression of undesired fundamental and higher order harmonics relative to both the input signal level and the desired output signal level.
| Input Frequency Range | 1 - 2 GHz |
|---|---|
| Output Frequency Range | 2.0 - 4.0 GHz |
| Conversion Loss | < 20 dB |
| Isolation | > 35 dB |
| Input Drive Level | 10 to 20 dBm |
| Operating Temperature | -55 to +85 deg C |
| Storage Temperature | -65 to +150 deg C |
| Package Type | Non-hermetic ceramic surface mount |
It is a miniature frequency doubler in a non-hermetic ceramic surface mount package.
The device operates between -55 and +125 degrees Celsius.
