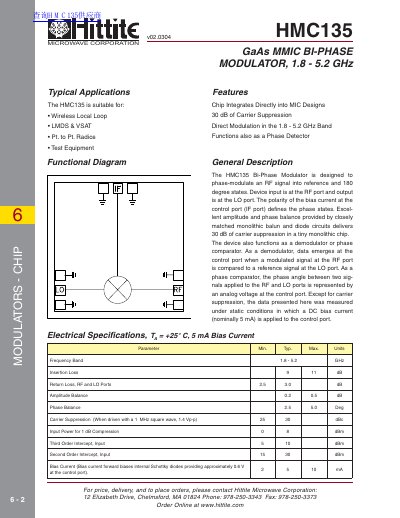

HMC135 is a GaAs MMIC Bi-Phase Modulator produced by Hittite. It can be directly integrated into MIC circuits, directly modulated in the 1.8-5.2 GHz band, and has a carrier suppression ratio of 30 dB. The device can also be used as a phase detector.
The HMC135 is a GaAs MMIC Bi-Phase Modulator designed for frequencies between 1.8 and 5.2 GHz. It integrates directly into microwave designs to phase-modulate RF signals into reference and 180-degree states, providing 30 dB of carrier suppression. The device also functions as a phase detector or demodulator.
| Frequency Band | 1.8 - 5.2 GHz |
|---|---|
| Carrier Suppression | 30 dB |
| Insertion Loss | Typ. 1 dB |
| Return Loss | Typ. 3.0 dB |
| Amplitude Balance | Typ. 0.5 dB |
| Phase Balance | Typ. 5.0 Deg |
The HMC135 is suitable for Wireless Local Loop, LMDS & VSAT, Point to Point Radios, and Test Equipment.
Yes, the device functions as a phase comparator, representing the phase angle between two signals with an analog voltage.
The typical bias current is 5 mA, which forward biases internal Schottky diodes.
