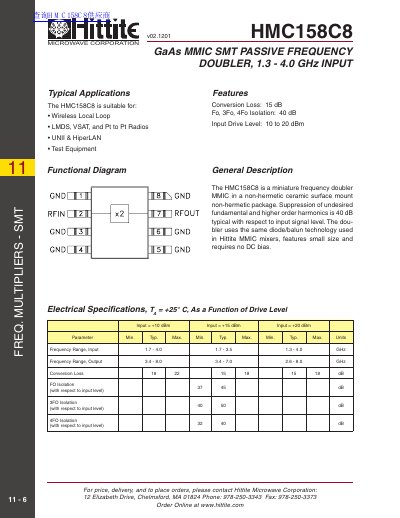

The HMC158C8 is a miniature frequency doubler MMIC suitable for applications such as wireless local loop, LMDS, VSAT, point-to-point radios, and test equipment. It features small size, requires no DC bias, and suppresses undesired fundamental and higher order harmonics.
The HMC158C8 is a miniature, surface-mount frequency doubler designed for wireless applications such as local loops and VSAT systems. It operates without requiring DC bias and features suppression of undesired harmonics up to 40 dB typical.
This document provides electrical specifications including conversion loss, isolation levels, and input drive requirements. It also details absolute maximum ratings, operating temperature ranges, and includes an evaluation PCB list of materials for testing the device.
| Conversion Loss | 15 dB typical at +10 dBm drive |
|---|---|
| Input Drive Level | 10 to 20 dBm |
| Harmonic Suppression | 40 dB typical |
| Operating Temperature | -40 to +85 °C |
No, this device requires no DC bias.
The typical conversion loss is 15 dB.
