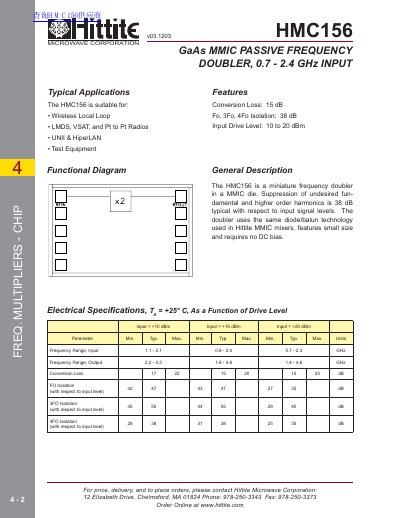

The HMC156 is a GaAs MMIC passive frequency doubler with an input frequency range of 0.7-2.4GHz, an output frequency range of 1.4-4.6GHz, a conversion loss of 15 dB, and 3Fo and 4Fo isolation of 38 dB. The input drive level is 10 to 20 dBm.
The HMC156 is a miniature frequency doubler in a MMIC die designed for applications such as wireless local loops, LMDS, VSAT, and test equipment. It utilizes diode/balun technology to suppress undesired harmonics with a typical suppression of 38 dB and requires no DC bias.
| Conversion Loss | 15 dB |
|---|---|
| Input Drive Level | 10 to 20 dBm |
| Operating Temperature | -55 to +85 °C |
| Storage Temperature | -65 to +150 °C |
The HMC156 is suitable for wireless local loops, LMDS, VSAT, Pt to Pt radios, UNII & HiperLAN, and test equipment.
No, the doubler requires no DC bias.
