The HMC213MS8 is an ultra miniature double-balanced mixer ideal for base stations, PCMCIA transceivers, and wireless local loop applications. It features a conversion loss of 8.5 dB and LO/RF isolation of 40 dB.

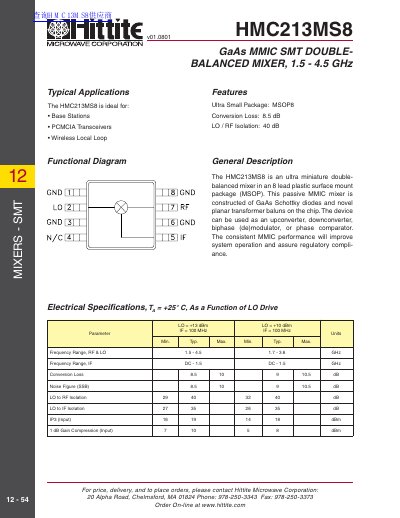

The document describes the HMC213MS8 GaAs MMIC SMT Double-Balanced Mixer, which operates in a frequency range of 1.5 - 4.5 GHz for RF and LO signals. The device is housed in an ultra-small MSOP8 package and utilizes GaAs Schottky diodes with planar transformer baluns.
| Conversion Loss (Typical) | 8.5 dB |
|---|---|
| LO to RF Isolation (Typical) | 40 dB |
| Operating Temperature Range | -40 to +85 °C |
The device is ideal for Base Stations, PCMCIA Transceivers, and Wireless Local Loop systems.
It uses an ultra-small 8 lead plastic surface mount package (MSOP).
The absolute maximum rating for LO Drive is +27 dBm.
