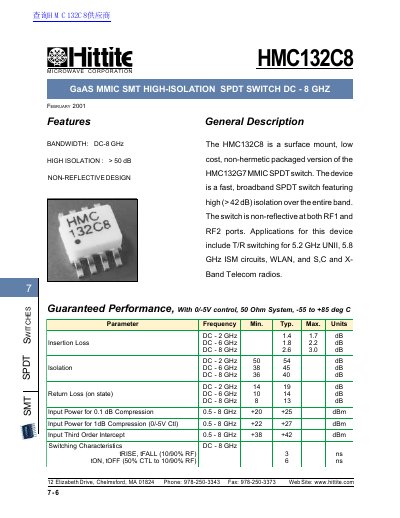

The HMC132C8 is a surface mount, low cost, non-hermetic packaged version of the HMC132G7 MMIC SPDT switch. The device is a fast, broadband SPDT switch featuring high (> 42 dB) isolation over the entire band. The switch is non-reflective at both RF1 and RF2 ports. Applications for this device include T/R switching for 5.2 GHz UNII, 5.8 GHz ISM circuits, WLAN, and S,C and X-Band Telecom radios.
The HMC132C8 is a surface mount, low-cost, non-hermetic packaged version of the HMC132G7 MMIC SPDT switch. It is a fast, broadband SPDT switch featuring high isolation over the entire band and is non-reflective at both RF1 and RF2 ports. Applications include T/R switching for 5.2 GHz UNII, 5.8 GHz ISM circuits, WLAN, and S, C, and X-Band Telecom radios.
| Bandwidth | DC - 8 GHz |
|---|---|
| Isolation | > 50 dB |
| Operating Temperature | -55 to +85 deg C |
| Storage Temperature | -65 to +175 deg C |
| Insertion Loss (DC - 8 GHz) | 2.6 - 3.0 dB |
| Isolation (DC - 8 GHz) | 3.6 - 4.0 dB |
| Return Loss (on state) | 8 - 13 dB |
| Switching Time (tRISE, tFALL) | 3 ns |
The operating temperature range is -55 to +85 deg C.
The bandwidth is DC to 8 GHz.
The device features high isolation greater than 50 dB.
