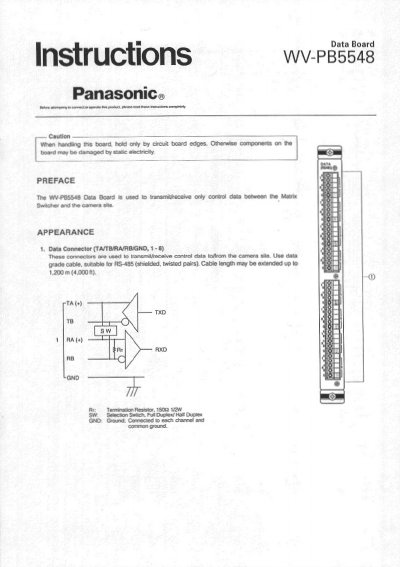

The Panasonic WV-PB5548 is a Data Board designed for use with the WJ-SX550A Matrix Switcher. It facilitates the transmission and reception of control data between the switcher and camera sites, supporting up to 64 total data input/output channels across eight boards. The board features selectable communication modes (Full Duplex or Half Duplex) configurable via internal switches.
| Max. Cable Length | 1,200 m (4,000 ft) |
|---|---|
| Dimensions | 24.5 x 265 x 260 mm |
The board supports a baud rate ranging from 1200 to 19200 bps.
The manual states that the cable length may be extended up to 1,200 m (4,000 ft).
Initially, Full Duplex positions are selected at the factory for the communication lines.
