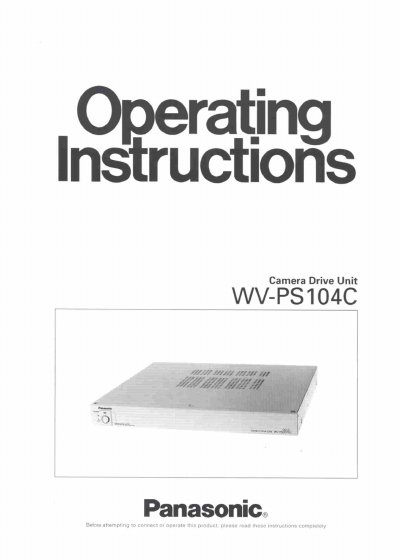

The Panasonic WV-PS104C is a camera drive unit designed to drive up to four specified Panasonic cameras, such as the WV-BP70 or WV-CP100. It supplies stable DC power and carries video, audio, and vertical drive pulses via a single coaxial cable. The unit is intended for surveillance and security applications in offices, factories, schools, and other buildings.
| Power Source | 120 V AC 60 Hz |
|---|---|
| Power Consumption | Approx. 65 W |
| Camera Input | 1.0 V[p-p] / 75 Ω |
| Video Output | 1.0 V[p-p] / 75 Ω |
| Camera Power Supply | Regulated current multiplex method (310 mA) |
| Ambient Operating Temperature | -10 °C ~ +50 °C |
| Dimensions | 420 (W) X 44 (H) X 350 (D) mm |
| Weight | 4.2 kg (9.3 lbs.) |
The unit is specially designed to drive up to four specified cameras.
It is designed to drive specified cameras such as the WV-BP70 or WV-CP100.
The maximum DC resistance of the cable between the camera and the drive unit is 20 Ω.
No, do not expose the appliance to rain or moisture, and avoid operating it in wet areas.
