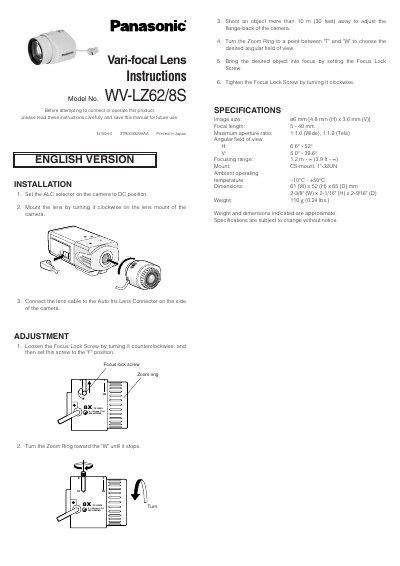

This document is the instruction manual for WV-LZ62/8S Vari-focal Lens, which introduces the installation, adjustment and use of the lens.
This manual provides instructions for installing and adjusting the Panasonic WV-LZ62/8S vari-focal lens. It details the steps for mounting the lens on a camera, connecting the cable, and performing initial adjustments such as setting the flange-back and choosing the desired angular field of view.
| Image size | 6 mm [4.8 mm (H) x 3.6 mm (V)] |
|---|---|
| Focal length | 6-40mm |
| Maximum aperture ratio | 1:1.6 (Wide), 1:1.9 (Tele) |
| Angular field of view | H: 6.6° - 82°, V: 5.0° - 39.6° |
| Focusing range | 1.2m - ∞ |
| Mount | CS-mount, 1"-32UN |
| Ambient operating temperature | 10°C - +50°C |
| Dimensions | 61 (W) x 82 (H) x 65 (D) mm |
| Weight | 110 g |
Mount the lens by turning it clockwise on the lens mount of the camera.
Loosen the Focus Lock Screw, set it to the "F" position, shoot an object more than 10 m away, and then tighten the screw.
