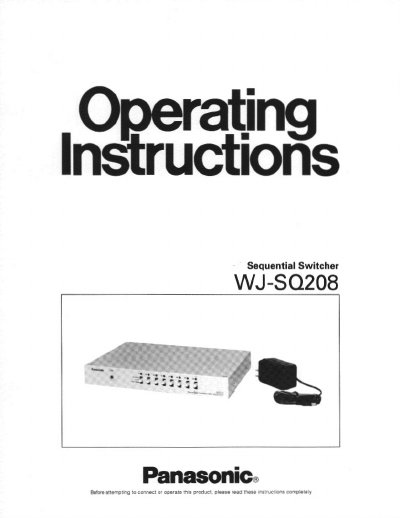

The Panasonic WJ-SQ208 is an 8-input sequential switcher designed for multi-camera security systems. It provides both sequential and spot video outputs, allowing users to view cameras in a rotating sequence or manually select a specific camera for a secondary monitor. The device features vertical interval switching to ensure glitch-free transitions between synchronized cameras.
| Camera Inputs | 1.0 Vp-p Composite / 75 ohms (BNC) x 8 |
|---|---|
| Camera Outputs | Sequence / Spot Out 1.0Vp-p Composite / 75 ohms (BNC) x 1 |
| Frequency Response | 4MHz+1dB |
| Gain | Unity |
| Switching Interval | Approx. 1 to 30 sec. |
| Power Source | DC 9V with provided AC Adaptor |
| Operating Temperature | +14°F to +122°F (-10°C to +50°C) |
| Dimensions | 13" x 1-3/4" x 7-7/8" (330 x 44 x 200 mm) |
The switching interval is manually adjustable from approximately 1 to 30 seconds.
Yes, a bypass switch allows any camera to be skipped from the switching sequence.
When not used, the spot output automatically becomes sequential.
