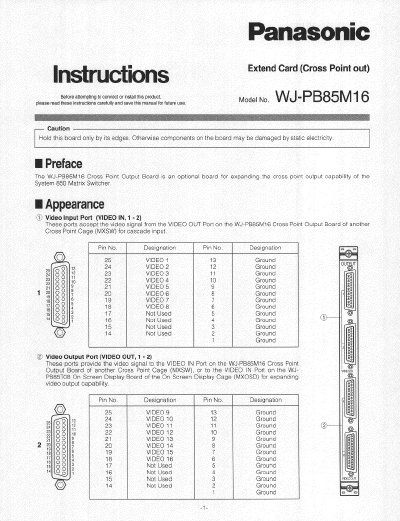

This document is a service manual for the Panasonic WJPB85M16 Cross Point Output Board, which serves as an optional expansion board for the System 850 Matrix Switcher. It provides instructions for setting board numbers and jumper configurations to manage video input and output capabilities.
| Video Input | 1.0 V[p-p]/75 Q composite video signal |
|---|---|
| Video Output | 1.0 V[p-p]/75 Q composite video signal |
| Input Connectors | 8 inputs 25-pin D-sub connector (x2) |
| Output Connectors | 8 outputs 25-pin D-sub connector (x2) |
| Dimensions (Front Board) | 255(W) x 250(H) x 12(D) mm |
| Weight | 0.5 kg (1.1 Ibs) |
The factory default setting is Board Number 1 (00).
The factory default setting is position MODE A (Normal).
Installation should be made by qualified service personnel or system installers.
