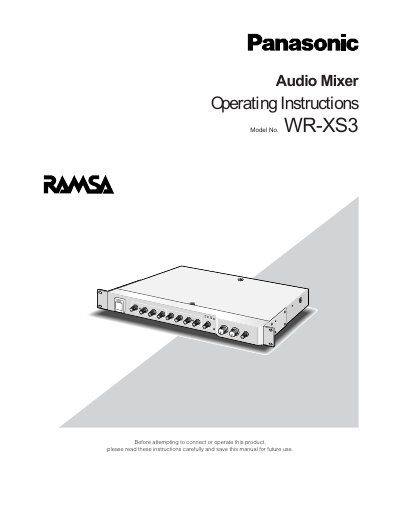

Panasonic WR-XS3 Audio Mixer Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic WR-XS3 Audio Mixer. It details safety precautions, major controls, and installation steps including power connection and rack mounting.

The guide explains how to configure the unit into one of three amplification modes (Mode 1: One-circuit, Mode 2: Two-circuit, or Mode 3: Three-zone) using rear panel DIP switches. It also covers input line settings for SUB output, recorder connections, and basic operation procedures.

What's inside

• Important Safety Instructions
• Features
• Installation
• Setup Procedures
• Connection Examples
• Recorder Connections
• Operations
• Troubleshooting
• Specifications

Frequently asked questions

What are the three amplification modes supported by this mixer?

Mode 1 is one-circuit amplification (stereo: 1 and mono: 1), Mode 2 is two-circuit amplification (stereo: 1 or mono: 1), and Mode 3 is three-zone amplification (stereo: 1 and mono: 2).

Can the SUB OUT connector be assigned to different input lines?

Yes, the SUB OUTPLT connector can be assigned to a desired input line from among STEREO INPUT jack 1 to 4, MONO INPUT 1 to 4, and MULTI IN STEREO/MONO.

What happens if both MULTI INPUT and LINE IN are connected?

The signal from the MULTI INPUT jack(s) and the LINE IN jack are unavailable at the same time because the LINE IN jack has priority.
