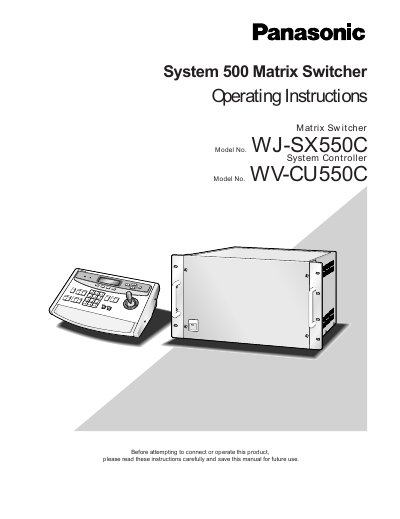

This document is the operating instructions for the system 500 matrix switcher, which introduces the features and usage methods of this product.
This manual provides step-by-step instructions for setting up and operating the Panasonic System 500 Matrix Switcher. The system allows flexible control of up to 128 cameras and 16 monitors when combined with optional units like the WV-CU550C System Controller and WJ-AD550 Extension Unit.
The document details features such as versatile camera switching modes, programmable tour and group sequences, and flexible alarm activation. It covers installation procedures, software setup for initial programming, daily operating procedures, and troubleshooting guides.
| Max. Number of Cameras | 128 cameras |
|---|---|
| Max. Number of Monitors | 16 monitors |
| Input Power Source | 120 V AC 60 Hz |
| Operating Temperature | -10°C - +50°C (14°F - 122°F) |
| Max. Humidity | below 90 % |
The system allows for flexible control of up to 128 cameras and 16 monitors.
Yes, thanks to its modular construction, the WJ-SX550C allows for flexible expansion to meet future needs.
The appliance should be used at temperatures within -10°C - +50°C (14°F - 122°F).
