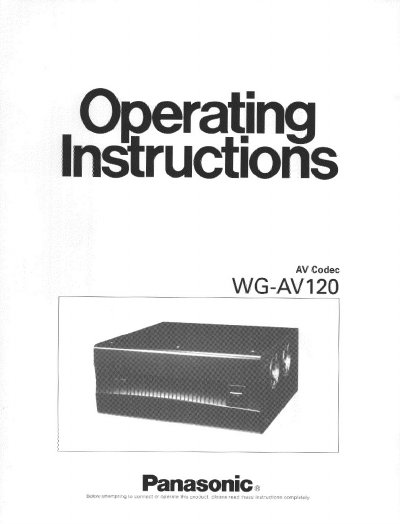

Panasonic WG-AV120 AV Codec Operating Instructions

Brand: Panasonic
Category: Office Equipment
Document type: User Manual
Language: English
Pages: 40
File format: PDF
File size: 1.2 MB
Published: 08 August, 2012
Updated: 23 August, 2012
MD5 checksum: 93B885666FDB4301432BDB7384D00ED5
PDF: Panasonic WG-AV120 AV Codec Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic WG-AV120 AV Codec, a core unit for the Panasonic Vision Series Video Conference System. It details the installation of optional Network I/F Boards and batteries for the remote controller, along with safety precautions regarding electrical shock and moisture.

What's inside

Preface
Features
Precautions
Major Operating Controls
Installation
System Connections
Operating Procedures
Setup & Registration
Specifications
Standard Accessories

Specifications

Input Power Source	120V AC 60Hz
Operating Humidity	below 90%
Video Compression Standard	H. 261
Battery Type	Two AA size (R6P)

Frequently asked questions

Who should perform the installation of this unit?

All necessary procedures regarding the installation of this unit should be made by qualified service personnel or system installers.

Can the user open the unit to service it?

No, users should not remove covers or screws as there are no user-serviceable parts inside.

What happens if the unit becomes wet?

Turn the power off immediately and refer servicing to qualified service personnel to prevent damage or electric shock.
