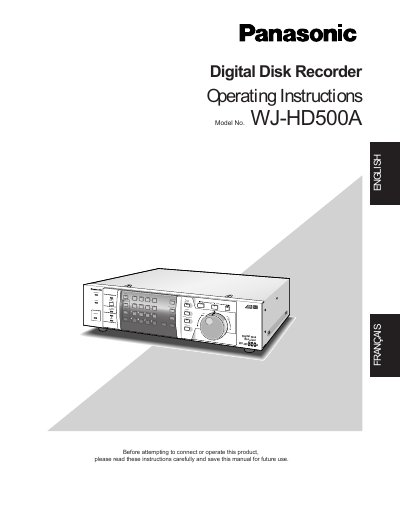

This manual introduces the connection and operation methods of WJ-HD500A Digital Disk Recorder.
The Panasonic WJ-HD500A is a digital disk recorder that combines hard disk recording with video multiplexing capabilities. It can handle up to sixteen sequentially controlled video inputs divided into four groups, allowing for simultaneous multi-recording of various applications based on system requirements.
This manual provides comprehensive guidance on installing the unit and optional boards (Hard Disk, Motion Detector, Network), connecting cameras, monitors, and remote controllers, and configuring setup menus. It details operating procedures for controlling video input, managing alarms, performing different recording modes (One Shot, Multi Shot, Time Lapse), and executing playback functions.
The WJ-HD500A Digital Disk Recorder can handle up to sixteen sequentially controlled video inputs.
The available recording modes are One Shot, Multi Shot, and Time Lapse Recording.
The appliance should be used at temperatures between +5°C and +45°C with humidity below 85%.
