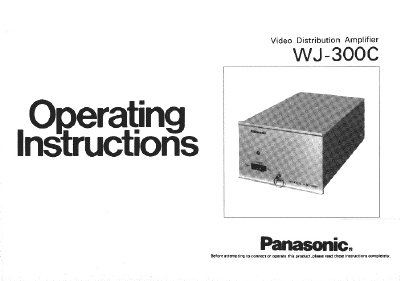

The Panasonic WJ-300C is a video distribution amplifier designed to distribute color or monochrome video signals. It features an input selection switch that allows for distributing six isolated outputs from one input, or three outputs each from two separate inputs. The unit supports both rack mounting and table-top use.
| Video Input | 1.0Vp-p/75 ohms composite video signal (Maximum 2.0Vp-p) |
|---|---|
| Video Output | 1.0Vp-p/75 ohms composite video signal (Maximum 2.0Vp-p) |
| Differential Gain | Less than 0.5% |
| Frequency Response | Within +0.2dB at B8MHz |
| Dimensions (Inches) | 5-1/2" (W) X 3-1/2" (H) x 8-7/8" (D) |
| Weight | 4.12 Ibs (1.87kg) |
The unit should operate within a temperature range of 14°F to 122°F (-10°C ~ +50°C).
It provides six isolated video outputs from one input, or three outputs each from two separate inputs.
Yes, it is designed for either rack mounting or table top use.
