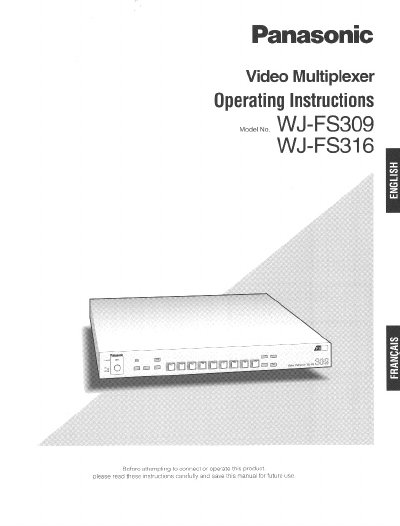

Panasonic WJ-FS309/WJ-FS316 Video Multiplexer Operating Instructions

About this manual

The Panasonic WJ-FS309 and WJ-FS316 are Black and White Video Multiplexers designed for use in surveillance security systems. They combine cameras, alarm sensors, a Time Lapse VCR, two video monitors, and a PC to allow simultaneous monitoring of spot pictures and image sequences from multiple cameras on up to 16 screen segments (for the WJ-FS316 model).

What's inside

• Preface
• Features
• Precautions
• Major Operating Controls
• Setup Menu
• Alarm Setup Menu
• System Connections
• Operating Procedures
• Specifications

Frequently asked questions

What are the operating temperature limits for this video multiplexer?

The appliance must be used at temperatures between -10°C and +50°C (14°F to 122°F).

What is the required input power source for this unit?

The input power source must be 120 V AC 60 Hz.

How far from the wall should the unit be placed to prevent overheating?

Place the appliance at least 5 cm (2 inches) away from the wall.
