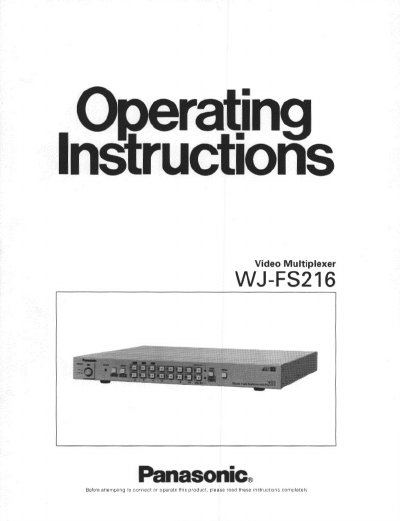

The Panasonic WJ-FS216 is a video multiplexer designed to pick up field signals from up to 16 black & white or color cameras and record them on a time lapse VCR. It supports monitoring pictures in single, quad (4x1), 3x3, or 4x4 multi-picture modes.
| Number of cameras supported | Up to 16 |
|---|---|
| Operating temperature range | -10°C to +50°C |
| Humidity limit | Below 90% |
| Input power source | 120 V AC, 60 Hz |
The two available modes are MULTIPLEX mode and MULTISCR mode.
Quad picture consists of 4 pictures, while multi-picture mode supports 3x3 or 4x4 grids.
The message 'CHXXLOSS' is displayed and the buzzer beeps to indicate an alarm.
