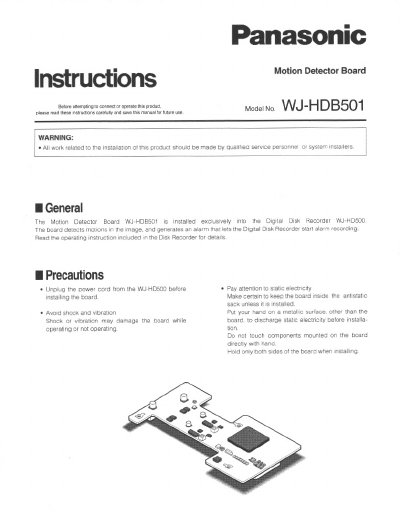

The Panasonic WJ-HDB501 is a Motion Detector Board designed exclusively for installation into the Digital Disk Recorder WJ-HDS500. It detects motion in the image to generate an alarm that initiates alarm recording on the recorder. The board requires a DC power supply of +3.5V or +5V supplied from the WJ-HDS500.
| Required Power | DC +3.5 V/5 V |
|---|---|
| Power Consumption | 81 mA at 5V, 14 mA at 3.3V |
| Operating Temperature | +5°C to +45°C |
| Weight | 80 g |
| Video Input | 1 V[p-p] x 16 Channel, Composite Video |
| Detection Period | 3-field x Numbers of Channel in use |
| Detection Area | 4 Areas/Channel |
| Detection Sensitivity | High/Middle/Low |
The Motion Detector Board WJ-HDB501 is installed exclusively into the Digital Disk Recorder WJ-HDS500.
The board requires DC +3.5 V or +5 V, which is supplied from the WJ-HD500.
The board supports 4 areas per channel.
