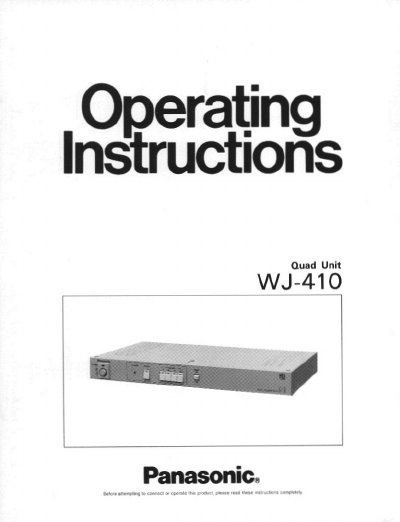

The Panasonic WJ-410 is a quad unit designed for CCTV applications where multiple surveillance cameras are required. It allows up to four cameras to be connected, displaying them in separate windows on the monitor screen or in a single full-size picture mode. The system supports most 2:1 interlace black and white cameras without requiring synchronization of all four video inputs.
| Compatible Cameras | Most 2:1 interlace black and white cameras |
|---|---|
| Max Cameras | Up to four cameras |
| Display Modes | Quad or Single Camera display modes |
| Character Generator Capacity | Up to 8 characters per window |
| Operating Temperature | -10°C - +50°C (14°F - 422°F) |
| Max Humidity | Below 90% |
| Alarm Reset Time Range | 1 to 60 sec. |
Yes, up to four cameras may be connected and displayed in four windows for simultaneous viewing.
It is designed for CCTV applications where multiple surveillance cameras are required, allowing up to four cameras to be connected and displayed simultaneously.
This unit should be used under conditions where temperatures are within 14°F - 422°F (-10°C - +50°C) and humidity is below 90%.
The power source for these terminals should be less than DC 24 V.
