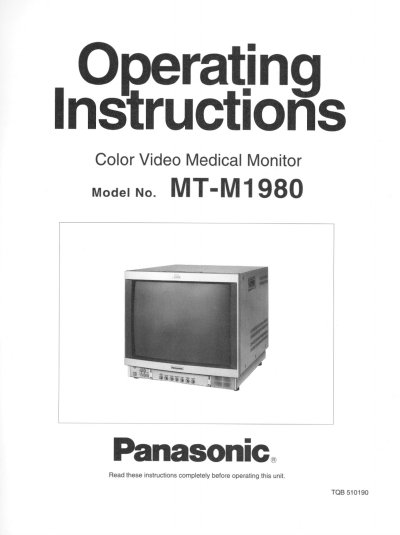

This document provides operating instructions for the Panasonic MT-M1980 Color Video Medical Monitor. It is designed for use in medical facilities under the direction of a trained physician to display information from patient monitoring or data collecting equipment. The unit supports four color systems (NTSC, M-NTSC, PAL, SECAM) and features high horizontal resolution with various input/output terminals.
| Power Supply | 120 volts 50/60Hz, AC house current only |
|---|---|
| Temperature Range | 32°F ~ 104°F (0°C~+40°C) |
| Humidity Range | 30%~85% |
| Color Systems Supported | NTSC, M-NTSC, PAL, SECAM |
| Horizontal Resolution | more than 700 lines |
| Speaker Output Power | 1.5W |
The unit can accept four standards: NTSC, M-NTSC, PAL, and SECAM.
Yes, using the Overscan Switch to increase the display size by approximately 117%.
