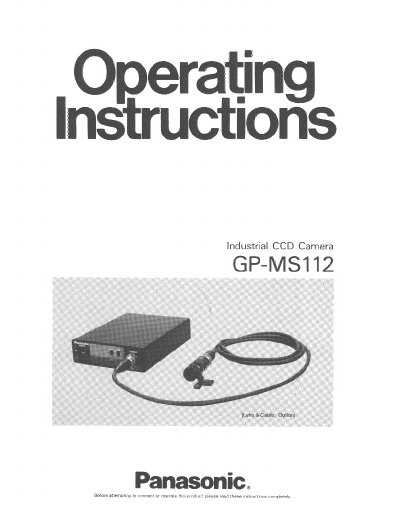

The document provides instructions for the Panasonic GP-MS112, a compact 1/2-inch Interline CCD image sensor camera. It details features such as automatic gain control, gen-lock capability, and various lens options including super wide-angle and telephoto lenses.
The guide includes preparation steps for mounting different lenses (Pinhole, Wide-Angle, C-Mount), explains the functions of major operating controls like focus rings and pedestal adjustments, and lists technical specifications regarding resolution, illumination requirements, and power supply needs.
| Image Sensor | 1/2 inch Interline CCD image sensor with 682(H) x 492(V) pixels. |
|---|---|
| Horizontal Resolution | 500 lines |
| Minimum Scene Illumination | 0.07 footcandle (0.7 lux) |
| Signal to Noise Ratio | 46 dB |
| Power Supply | DC 12V, 0.5A - 0.7A CLASS 2 Power Supply only. |
The maximum cable length is 99 feet (30 meters) when using an optional camera cable.
Yes, an optional C-mount adaptor is required to use a C-mount lens.
You should never face the camera toward the sun, whether it is in use or not.
