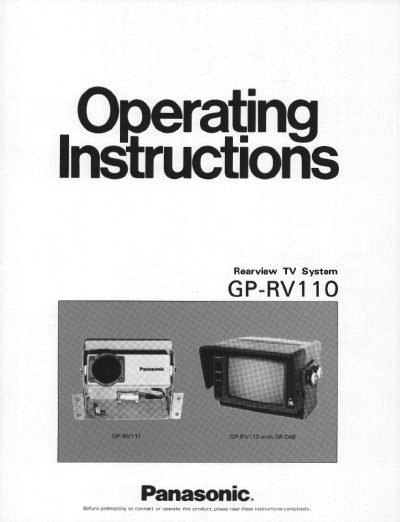

The document covers the features and precautions of the Panasonic GP-RV110 Rearview TV System, which includes the GP-RV111 rearview camera and the GP-RV112 driver's monitor. It details specifications such as a 7-inch non-glare screen for the monitor and a wide-angle lens with an f=3.0mm focal length for the camera.
| Image Sensor Type | 1/2" Interline Transfer CCD Image Sensor |
|---|---|
| Horizontal Resolution | 300 lines |
| Minimum Illumination | 0.5 footcandles (5 lux) |
| Signal to Noise Ratio | 40 dB |
| Lens Focal Length | 3.0mm |
| Monitor Screen Size | 7 inch |
| Ambient Temperature Range (Camera) | -10°C to +55°C |
| Ambient Temperature Range (Monitor) | -10°C to +55°C |
| Maximum Humidity (Monitor) | 90% |
The monitor has STANDBY and ON modes. In STANDBY, the heater preheats while circuits shut off; in ON, the picture is displayed.
A 3 Amp fuse with Part No. YWTSC3A must be used.
