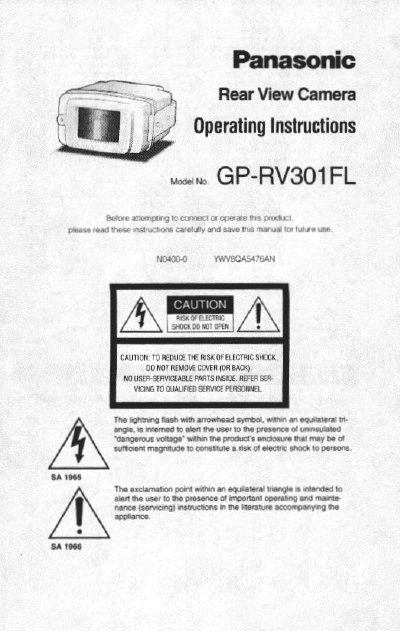

This document provides operating instructions for the Panasonic GP-RV301FL Rear View Camera. The device is specifically engineered for use in large trucks, buses, and other commercial vehicles to reduce dangerous blind spots when combined with a compatible monitor.
The manual details the camera's features, including its wide field of view, low-light performance, and audio capabilities. It also outlines safety precautions, installation guidelines, system connections, physical dimensions, and technical specifications.
| Power Requirement | 9V DC, 170 mA from exclusive Rearview Monitor model GP-RV700 |
|---|---|
| Horizontal Resolution | 386 lines (center: 380 lines) |
| Minimum Illumination | 0.25 lx with F2.0 lens |
| Signal-to-Noise Ratio | 46 dB |
| Angular Field of View | Horizontal: 100°, Vertical: 78° |
| Ambient Operating Temperature | -30°C to +60°C (-22°F - 140°F) |
| Dimensions | 90 mm (W) x 54 mm (H) x 70 mm (D) |
The GP-RV301FL Rearview Camera is designed exclusively for use in large trucks, buses and other commercial vehicles.
No. Do not expose the camera to rain or moisture, or try to operate it in wet areas.
The input power source is 9 V DC supplied by the exclusive Rearview Monitor GP-RV700.
