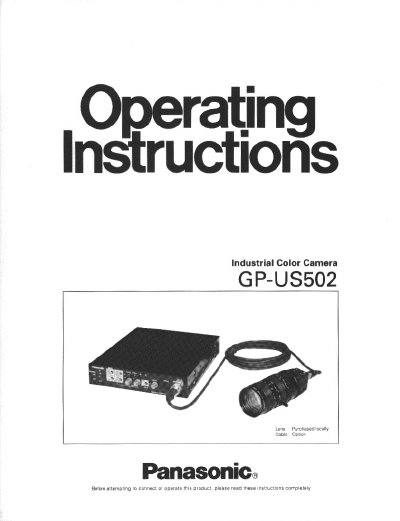

This manual provides operating instructions for the Panasonic GP-US502 Industrial Color Camera. It details the features of the camera, including its three 1/2" iT CCDs and digital signal processing capabilities. The document explains the functions of major operating controls on both the camera head and the camera control unit.
| Resolution | 700 lines of horizontal resolution |
|---|---|
| Signal to Noise Ratio | 56dB |
| Minimum Scene Illumination | 0.9 footcandle (9 lux) at F2.8 with + 18dB gain |
| Power Supply | 12V DC |
| CCD Type | Three 1/2" iT CCDs |
The minimum scene illumination is 0.9 footcandle (9 lux) at F2.8 with + 18dB gain.
Yes, the camera features Auto Tracing White Balance (ATW), Auto White Balance Control (AWC), or Manual White Balance Control.
The camera operates on 12V DC power.
