Panasonic GP-RV202 Rear View Monitor User Manual

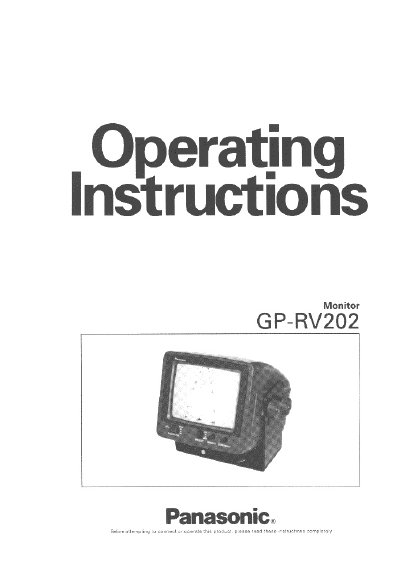

Panasonic GP-RV202 Rear View Monitor User Manual - cover page
Brand
Panasonic
Category
Monitor
Document type
User Manual
Language
English
Pages
12
File format
PDF
File size
261 KB
Published
08 August, 2012
Updated
23 August, 2012
MD5 checksum
24EB3557A7BBB11D40F77B6D6DD3A980

About this manual

The Panasonic GP-RV202 is a 5.5-inch black-and-white rear view monitor developed exclusively for use in large trucks, buses, and other commercial vehicles. It features an easy-to-see screen with day/night selection and accepts DC12V or DC24V power sources. When combined with the GP-RV201 Rear View Camera, it helps significantly reduce dangerous blind spots.

What's inside

  • Preface
  • Features
  • Precaution
  • Major Operating Controls
  • Installation
  • Adjustment
  • Operating Procedure

Specifications

Screen Size5.5"
Power SourceDC12V or DC24V
Ambient Temperature-15°C to +60°C
Humidity LimitBelow 90%

Frequently asked questions

How does the Day/Night switch function?

The switch controls brightness levels; DAY provides normal brightness, while NIGHT reduces it for low-light conditions.

What is the purpose of the remote STANDBY/ON control?

It allows automatic activation of the monitor when the vehicle's gear shift lever is moved to the reverse position.
