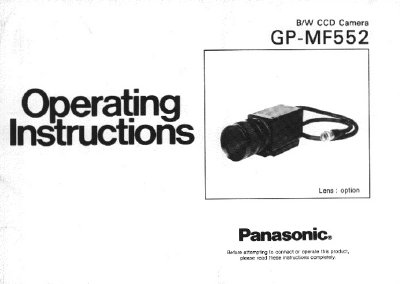

This manual provides operating instructions for the Panasonic GP-MF552, a black and white solid-state industrial camera featuring a 2/3" ITL CCD image sensor. It details the major operating controls, including mode selection switches for AGC, gain, gamma, and electronic shutter functions, as well as external synchronization inputs for HD and VD signals.
The document also covers installation procedures, such as mounting the camera from the top or bottom using a mount adaptor, and provides specific precautions regarding environmental conditions like temperature and humidity. It includes connection examples for the optional camera cable and lists technical specifications.
| Image Sensor | 2/3" ITL CCD |
|---|---|
| Resolution | 768 (H) x 493 (V) pixels |
| Ambient Temperature | 14°F - 122°F (—10°C - +50°C) |
| Input Power | DC 12V, 260 mA |
| Dimensions | 1-5/8" (W) x 1-5/8" (H) x 3-1/8" (D) |
| Weight | 0.46 Ibs, (210 g) |
Yes, the mount adaptor on the top can be removed and attached to the bottom for mounting on a bracket.
Yes, external HD and VD input enable system set-up with external video processors.
